PRESSURE SWITCH

DNL-35-20-K-L

德門精機股份有限公司 Hidraman Co.,Ltd.

DNL = saklar tekanan

Nomor paten Taiwan: M558457

Nomor Paten Tiongkok Daratan: 7382676

Tekanan maksimum: 600 bar (8571 PSI)

Reproduksibilitas: ± 1%

Beban kontak : 250 VAC (AC) 3A (Ampere) 30 VDC (DC) 4A (Ampere)

Frekuensi peralihan: 60 kali per menit

Spesifikasi perlindungan: IP 65 DIN40050

Oli yang digunakan: mineral, tahan aus.

Kisaran viskositas: 10-400 cST (59-1854 SSU)

Suhu pengoperasian: -15-70OC ( -5-158 OF )

Kebersihan: Dalam NAS level 12

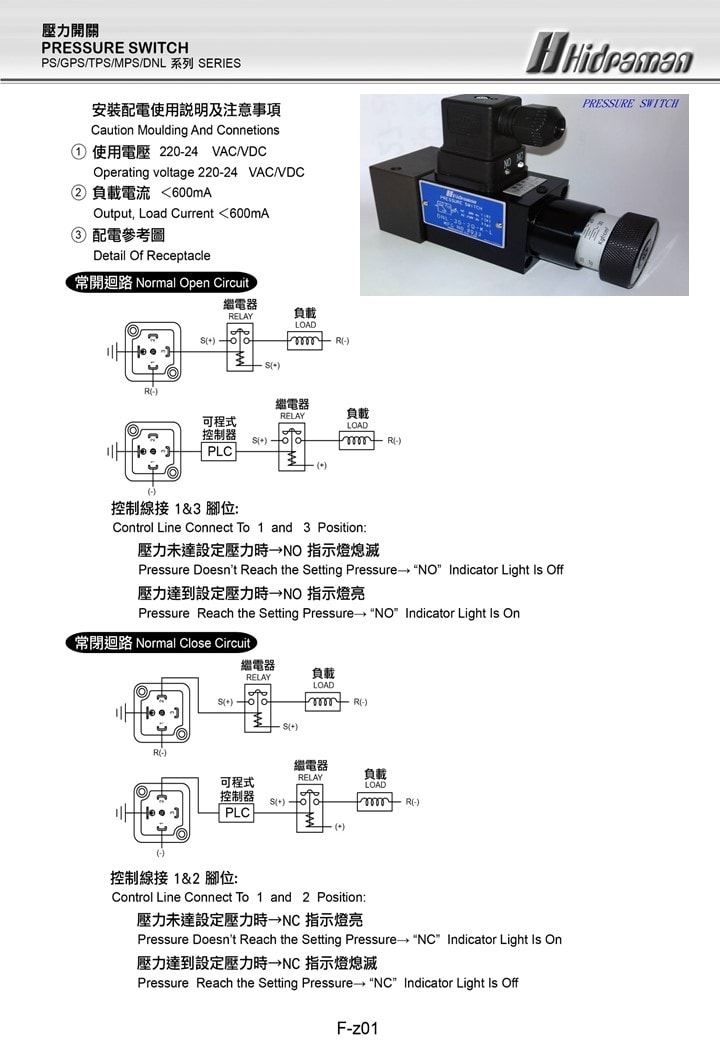

  Petunjuk pemasangan dan distribusi serta tindakan pencegahan

1.Gunakan tegangan 220-24 VAC/VDC

2. Arus beban <600 Ma

    Biasanya sirkuit terbuka:

Kabel kontrol terhubung ke pin 1 & 3:

Bila tekanan tidak mencapai tekanan yang disetel -> lampu indikator NO padam.

Ketika tekanan mencapai tekanan yang disetel -> lampu indikator NO menyala.

Biasanya loop tertutup:

Kabel kontrol terhubung ke pin 1 & 2:

Bila tekanan tidak mencapai tekanan yang disetel -> lampu indikator NC menyala.

Saat tekanan mencapai tekanan yang disetel -> lampu indikator NC padam.



DNL = PRESSURE SWITCH

Patent NO:Taiwan M558457

Patent NO :China:7382676

Max.Overpressure: 600 BAR ( 8571 PSI )

Repetition-Accuracy: ± 1%

Contaction Load: 250 VAC  3A / 30 VDC  4A

Change Over Frequency: 60 Operations / min

Protection : IP 65 DIN40050

Fluid Type : Mineral , Anti-Wear

Viscosity : 10-400 cST ( 59-1854 SSU)

Operating Temperature : -15-70OC ( -5-158 OF )

Contamination Level : Under NAS Class12

l Caution Moulding And Connetions

  1.Operating voltage 220-24 VAC / VDC

  2.Output,Load Current < 600Ma

lNormal Open Circuit

Control Line Connect To 1 and 3 Position:

Pressure Doesn't Reach the Setting Pressure ->”NO”Indicator Light Is Off.

Pressure Reach the Setting Pressure ->”NO”Indicator Light Is On.

lNormal Close Circuit

Control Line Connect To 1 and 2 Position:

Pressure Doesn't Reach the Setting Pressure ->”NC”Indicator Light Is On.

Pressure Reach the Setting Pressure ->”NC”Indicator Light Is Off.
