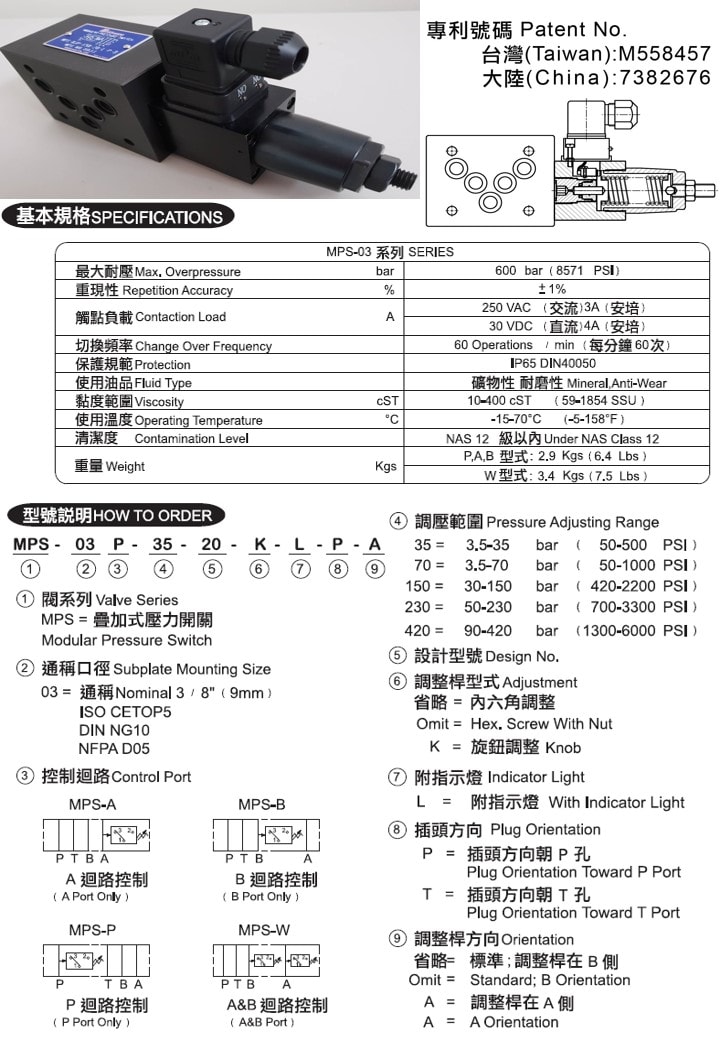

MODULAR PRESSURE SWITCH

MPS-03P-150-20-L-P-B

海德門精機股份有限公司 Hidraman Co.,Ltd.

MPS = saklar tekanan yang ditumpangkan

Nomor paten Taiwan: M558457

Nomor Paten Tiongkok Daratan: 7382676

MPS-02 / MPS-03 Tekanan maksimum: 600 bar (8571 PSI)

MPS-02 / MPS-03 Pengulangan: ± 1%

Beban kontak MPS-02 / MPS-03 : 250 VAC (AC) 3A (Ampere) 30 VDC (DC) 4A (Ampere)

Frekuensi peralihan MPS-02 / MPS-03: 60 kali per menit

Spesifikasi perlindungan MPS-02 / MPS-03: IP 65 DIN40050

Oli MPS-02 / MPS-03 yang digunakan: mineral, tahan aus.

Kisaran Viskositas MPS-02 / MPS-03 : 10-400 cST (59-1854 SSU)

Suhu pengoperasian MPS-02 / MPS-03: -15-70^OC ( -5-158^OF )

Kebersihan MPS-02 / MPS-03: Dalam NAS level 12

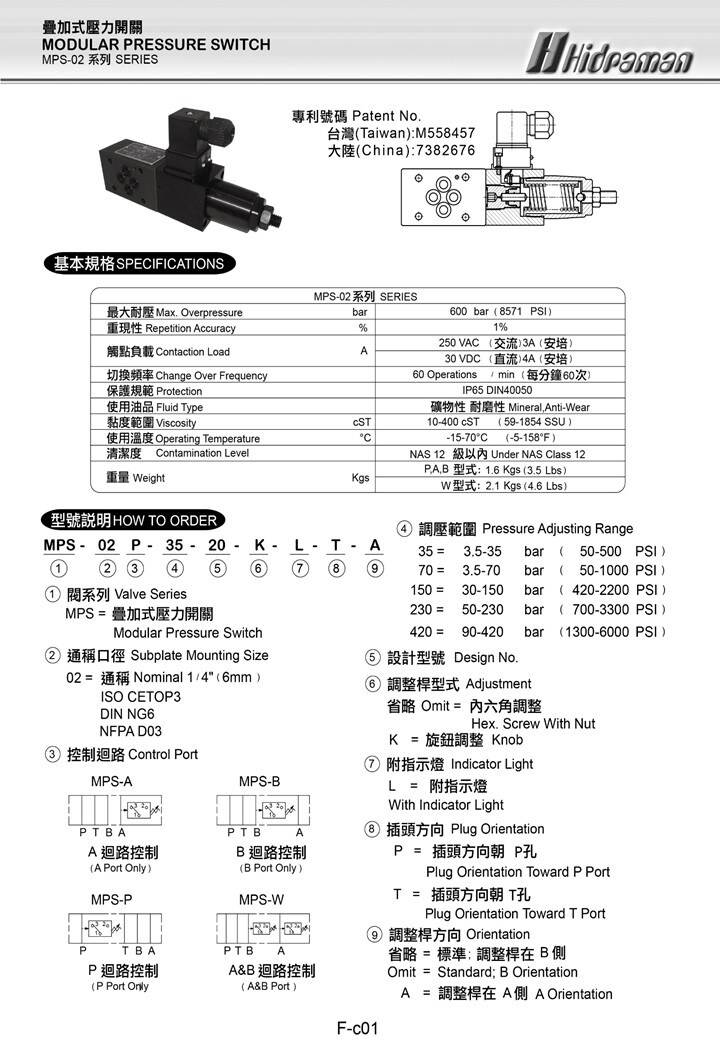

MPS = MODULAR PRESSURE SWITCH

Patent NO:Taiwan M558457

Patent NO :China:7382676

MPS-02 / MPS-03 Max.Overpressure: 600 BAR ( 8571 PSI )

MPS-02 / MPS-03 Repetition-Accuracy: ± 1%

MPS-02 / MPS-03 Contaction Load: 250 VAC 3A / 30 VDC 4A

MPS-02 / MPS-03 Change Over Frequency: 60 Operations / min

MPS-02 / MPS-03 Protection : IP 65 DIN40050

MPS-02 / MPS-03 Fluid Type : Mineral , Anti-Wear

MPS-02 / MPS-03 Viscosity : 10-400 cST ( 59-1854 SSU)

MPS-02 / MPS-03 Operating Temperature : -15-70^OC ( -5-158^OF )

MPS-02 / MPS-03 Contamination Level : Under NAS Class12
