MPR = katup pengurang tekanan bertumpuk
MPR -02 / MPR -03 Tekanan kerja maksimum: 210 bar (3000 PSI)
MPR -02 / MPR -03 Rentang pengaturan tekanan maksimum: 35,70,140,210 bar
(500.1000.2000.3000 PSI)
MPR -02 / MPR -03 Aliran Maksimum: 35 LPM (9,25 GPM) / 70 LPM (18,5 GPM)
Oli MPR -02 / MPR -03 yang digunakan: mineral, tahan aus.
MPR -02 / MPR -03 Kisaran viskositas: 10-400 cST (59-1854 SSU)
MPR -02 / MPR -03 Suhu pengoperasian: -15-70OC ( -5-158 OF )
MPR -02 / MPR -03 Kebersihan: Dalam NAS level 12
MPR -02 / MPR -03 Perawatan permukaan: Perawatan film fosfat
Pengaturan tekanan:
Putar sekrup atau pegangan penyetel searah jarum jam untuk meningkatkan tekanan, dan berlawanan arah jarum jam untuk mengurangi tekanan.
Setelah mengatur tekanan, kencangkan mur heksagonal atau mur pemasangan plastik.

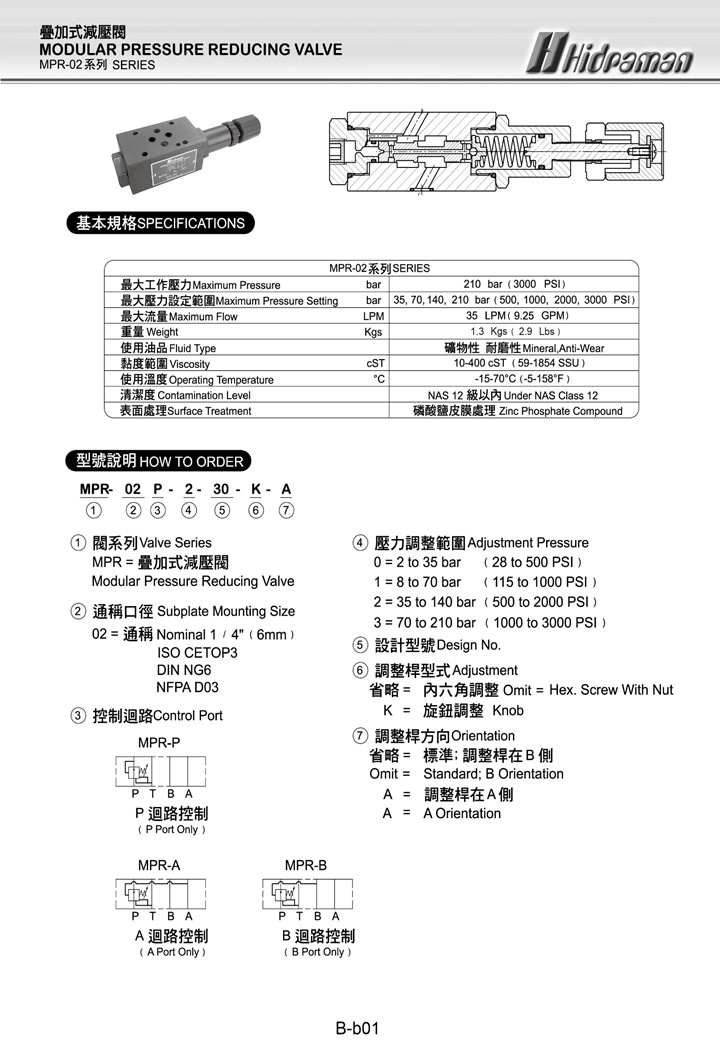

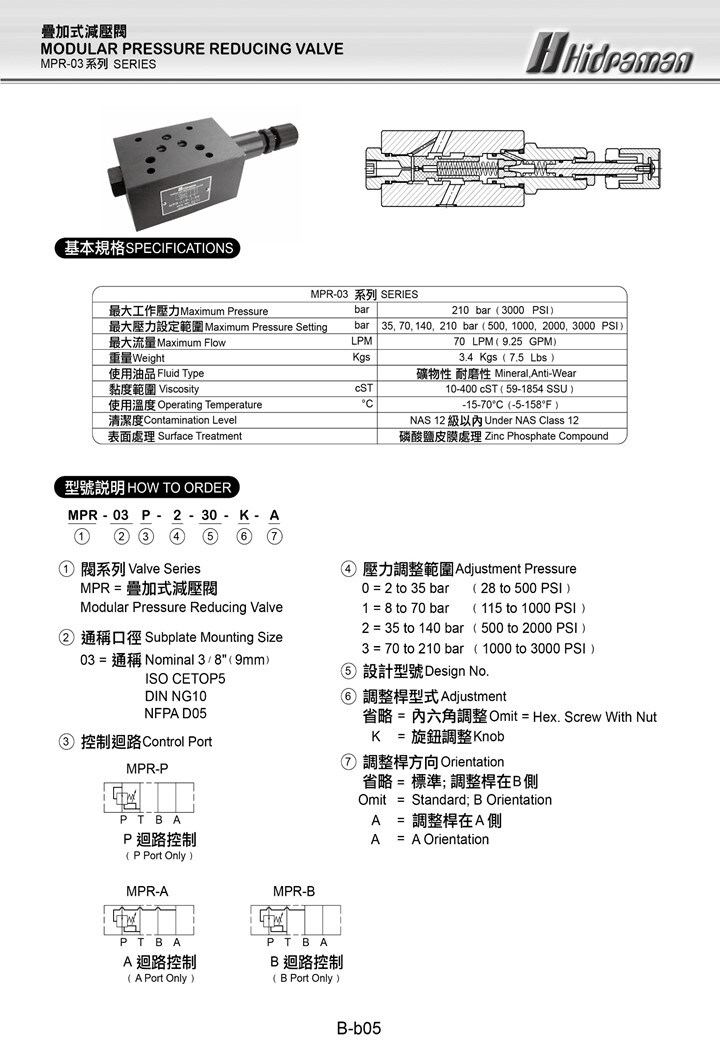

MPR = MODULAR PRESSURE REDUCING VALVE
MPR -02 / MPR -03 Maximum Pressure: 210 BAR ( 3000 PSI )
MPR -02 / MPR -03 Maximum Pressure Setting:35,70,140,210
(500,1000,2000,3000 PSI)
MPR -02 / MPR -03 Maximum Flow: 35 LPM (9.25 GPM) / 70 LPM (18.5 GPM)
MPR -02 / MPR -03 Fluid Type : Mineral , Anti-Wear
MPR -02 / MPR -03 Viscosity : 10-400 cST ( 59-1854 SSU)
MPR -02 / MPR -03 Operating Temperature : -15-70OC ( -5-158 OF )
MPR -02 / MPR -03 Contamination Level : Under NAS Class12
MPR -02 / MPR -03 Surface Treatment : Zinc Phosphate Compound.
Pressure Setting:
Facing to adjustment screw or knob , clockwise increasing pressure ,
Counterclockwise decreasing pressure.
Please tighten hex. nut or plastic setting nut after pressure adjusted.
