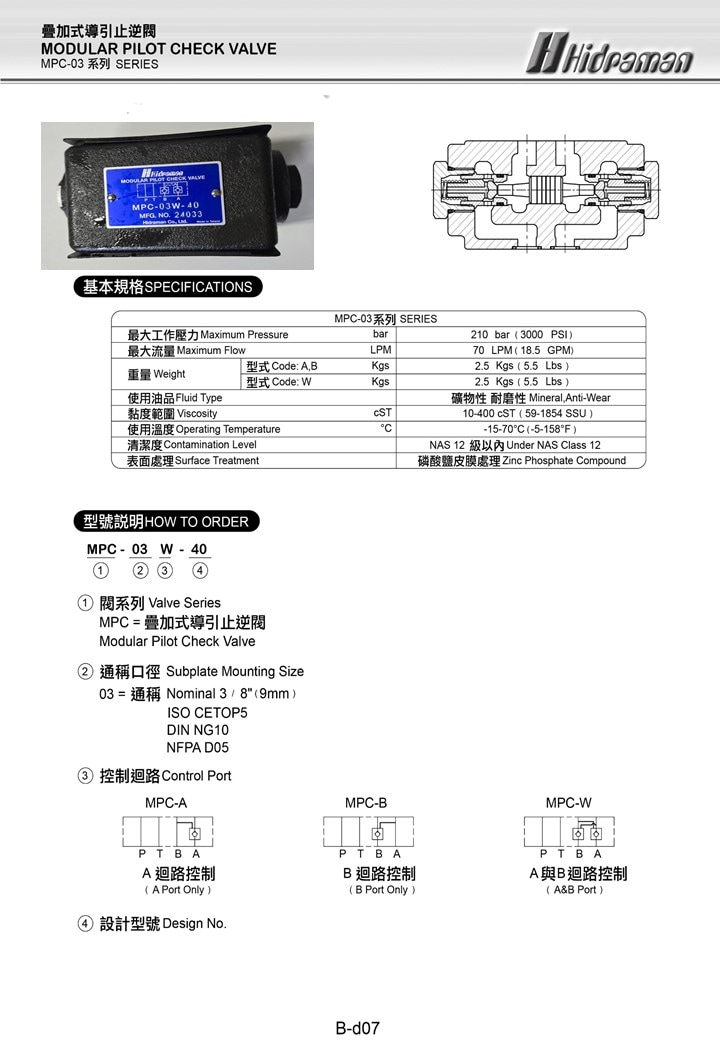

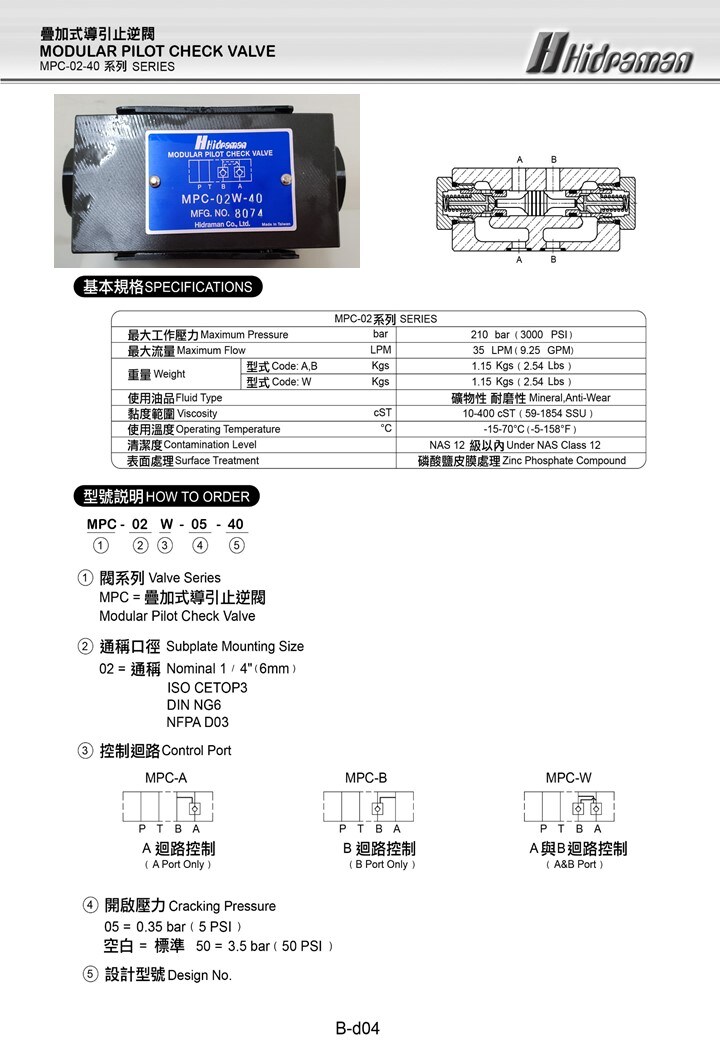

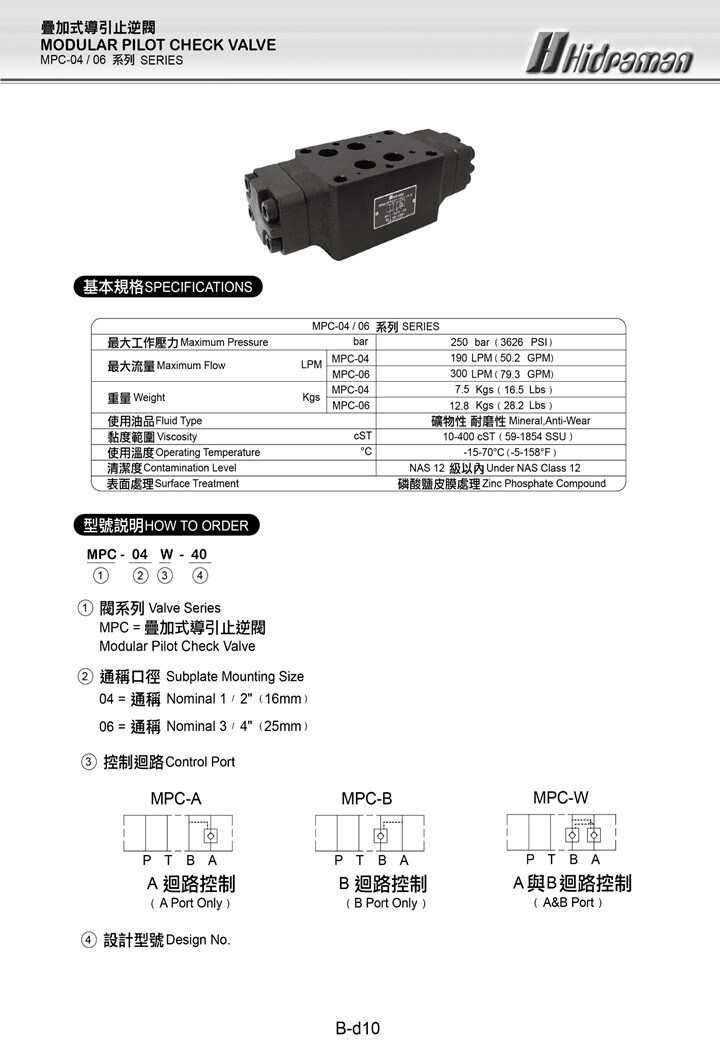

MODULAR PILOT CHECK VALVE
MPC = katup periksa pilot bertumpuk
Spesifikasi dasar:
Tipe: A,B,W
Tekanan Kerja Maksimum MPC-02: 210 BAR (3000 PSI) Tekanan Kerja Maksimum MPC-03: 210 BAR (3000 PSI)
Tekanan Kerja Maksimum MPC-04: 250 BAR (3626 PSI) Tekanan Kerja Maksimum MPC-06: 250 BAR (3626 PSI)
Laju Aliran Maksimum MPC-02: 35 LPM (9,25 GPM) Laju Aliran Maksimum MPC-03: 70 LPM (18,5 GPM)
Laju Aliran Maksimum MPC-04: 190 LPM (50,2 GPM) Laju Aliran Maksimum MPC-06: 300 LPM (79,3 GPM)
Oli yang digunakan: mineral, tahan aus. Kisaran viskositas: 10-400 cST (59-1854 SSU)
Suhu pengoperasian: -15-70OC ( -5-158 OF ) Kebersihan: Dalam NAS level 12
Perawatan permukaan: perawatan film fosfat
MODULAR PILOT CHECK VALVE
MPC = MODULAR PILOT CHECK VALVE
SPECIFICATIONS:
CODE : A,B,W
MPC-02 Maximum Pressure : 210 BAR ( 3000 PSI ) MPC-03 Maximum Pressure : 210 BAR ( 3000 PSI )
MPC-04 Maximum Pressure : 250 BAR ( 3626 PSI ) MPC-06 Maximum Pressure : 250 BAR ( 3626 PSI )
MPC-02 Maximum Flow : 35 LPM ( 9.25 GPM ) MPC-03 Maximum Flow : 70 LPM ( 18.5 GPM )
MPC-04 Maximum Flow : 190 LPM ( 50.2 GPM ) MPC-06 Maximum Flow : 300 LPM ( 79.3 GPM )
Fluid Type : Mineral , Anti-Wear Viscosity : 10-400 cST ( 59-1854 SSU)
Operating Temperature : -15-70OC ( -5-158 OF ) Contamination Level : Under NAS Class12
Surface Treatment : Zinc Phosphate Compound
