MSC = katup periksa satu arah yang dikontrol secara elektronik
Spesifikasi dasar:
Jenis:
MSC-A-NO = Loop kontrol yang biasanya terbuka MSC-A-NC = Loop kontrol yang biasanya tertutup
MSC-B-NO = B loop kontrol yang biasanya terbuka MSC-B-NC = B loop kontrol yang biasanya tertutup
MSC-W-NO = A & B loop kontrol biasanya terbuka MSC-W-NC = A & B loop kontrol biasanya tertutup
MSC-02 Tekanan kerja maksimum: 210 BAR (3000 PSI)
MSC-03 Tekanan kerja maksimum: 210 BAR (3000 PSI)
Laju Aliran Maksimum MSC-02: 30 LPM (8,0 GPM)
MSC-03 Laju aliran maksimum: 60 LPM (16,0 GPM)
Kisaran tegangan koil: 12/24 VDC 115/230 VAC 12/24 VDP
Kebocoran internal: 0,25 (cc/menit)
Oli yang digunakan: mineral, tahan aus.
Kisaran viskositas: 10-400 cST (59-1854 SSU)
Suhu pengoperasian: -15-70OC ( -5-158 OF )
Kebersihan: Dalam NAS level 12
Perawatan permukaan: perawatan film fosfat

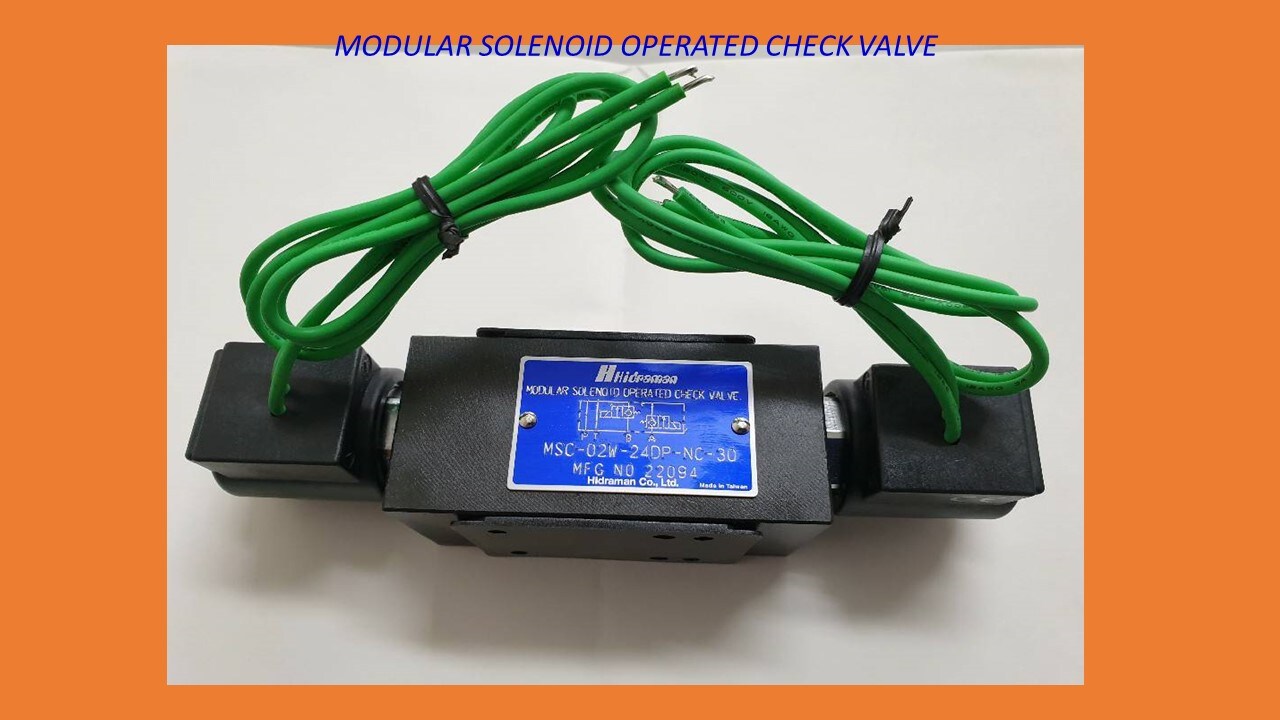

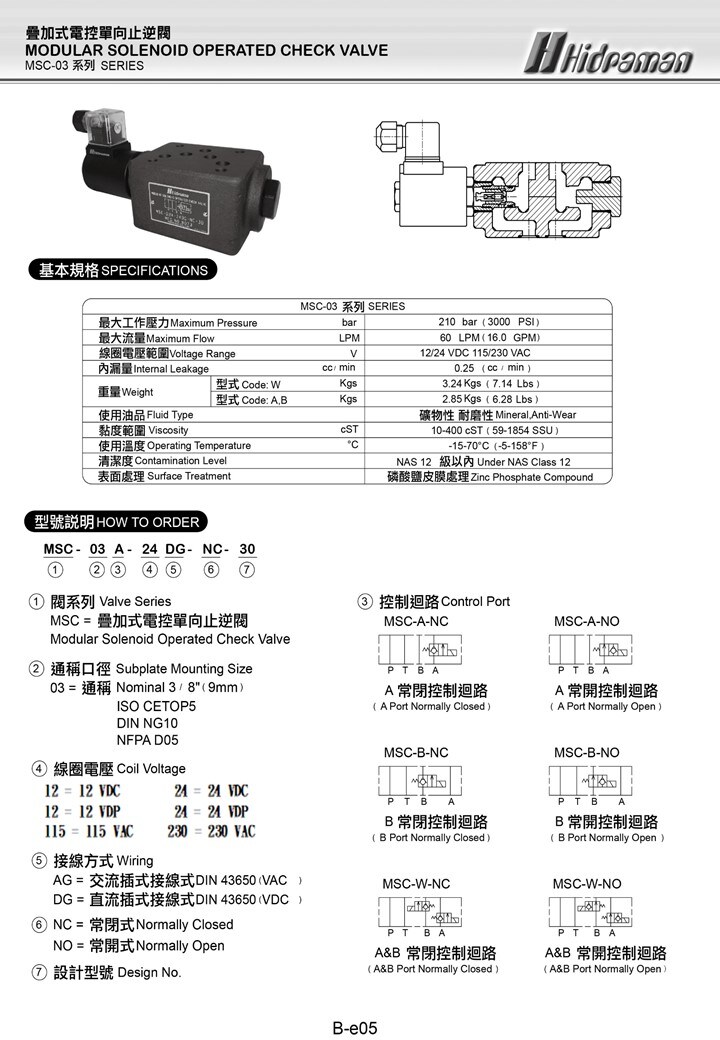

MSC = MODULAR SOLENOID OPERATED CHECK VALVE
SPECIFICATIONS
CODE:
MSC-A-NO ( A Port Normally Closed ) MSC-A-NC ( A Port Normally Open )
MSC-B-NO ( B Port Normally Closed) MSC-B-NC ( B Port Normally Open )
MSC-W-NO (A & B Port Normally Closed) l) MSC-W-NC ( A & B Port Normally Open )
MSC-02 Maximum Pressure : 210 BAR ( 3000 PSI ) MSC-03 Maximum Pressure : 210 BAR ( 3000 PSI )
MSC-02 Maximum Flow : 30 LPM ( 8.0 GPM ) MSC-03 Maximum Flow : 60 LPM ( 16.0 GPM )
Voltage Range : 12 / 24 VDC 115 / 230 VAC 12 /24 VDP
Internal Leakang : 0.25 (cc / min ) Fluid Type : Mineral , Anti-Wear
Viscosity : 10-400 cST ( 59-1854 SSU) Operating Temperature : -15-70OC ( -5-158 OF )
Contamination Level : Under NAS Class12 Surface Treatment : Zinc Phosphate Compound.
