MODULAR TWO SECTION PRESSURE REDUCING VALVE
MGS = katup pengurang tekanan dua tahap yang ditumpangkan
Fitur dasar:
1.Katup pengurang tekanan dua tahap yang ditumpangkan seri MGS-02P/03P dapat digunakan untuk mengurangi tekanan di lubang P,
dan dapat digunakan di sirkuit yang sama Konversi antara fungsi tekanan tinggi dan tekanan rendah.
2.Penggunaan maksimum MGS-02P: 40LPM (10,56 GPM) Penggunaan maksimum MGS-03P: 80LPM (21,13 GPM)
3.Tekanan operasi maksimum MGS-02P/03P: 70 BAR (1000 PSI)
4.Berat: MGS-02P(5.KG) MGS-03P(8.6KG)

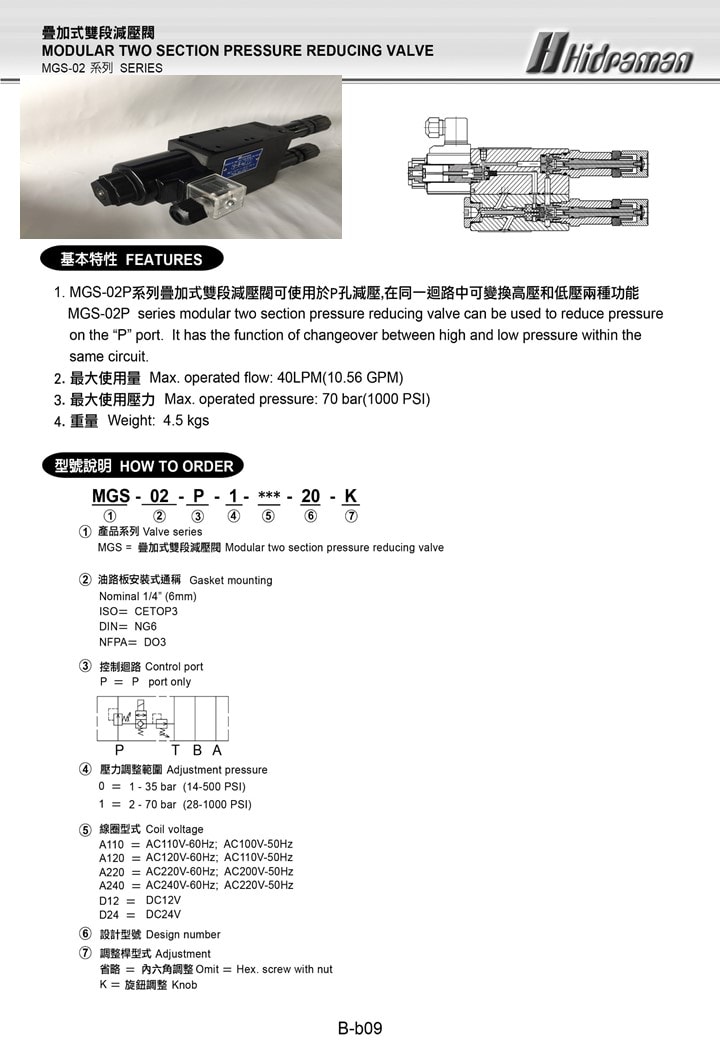

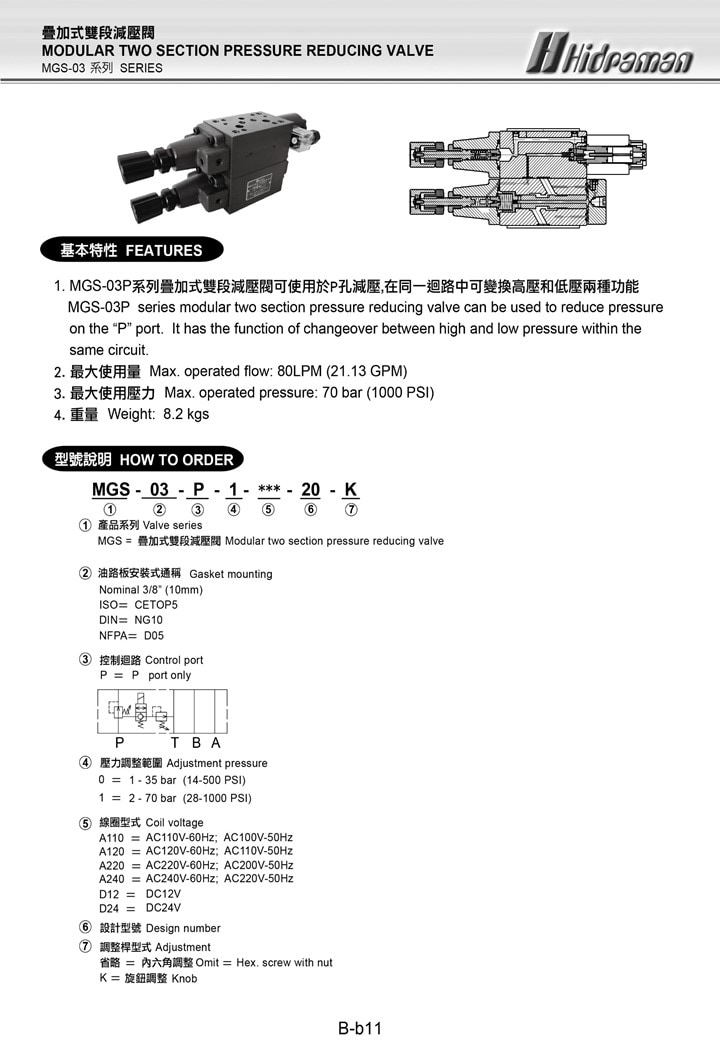

MGS = MODULAR TWO SECTION PRESSURE REDUCING VALVE
FEATURES:
1.MGS-02P/03P series modular two section pressure reducing valve can be used to reduce pressure on the "P" port. It has
the function of changeover between high and low pressure within the same circuit.
2.MGS-02P Max.operated flow: 40LPM(10.56 GPM) MGS-03P Max.operated flow: 80LPM(21.13 GPM)
3.MGS-02P/03P Max.operated pressure: 70 Bar(1000 PSI)
4.Weight: MGS-02P(5.KG) MGS-03P(8.6KG)
